Efficient feed cleaning machine
Efficient feed cleaning machine

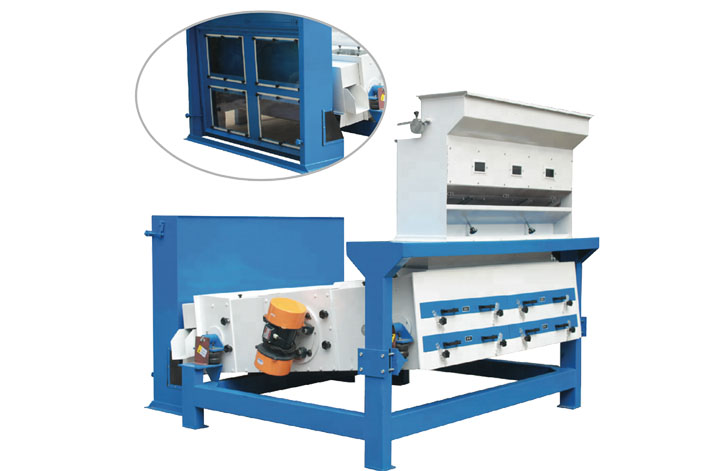

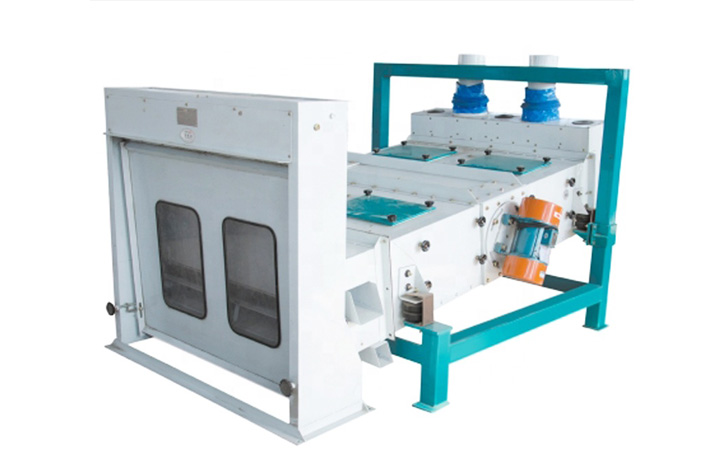

TQLZ vibration sieve cleaner is widely used for pre-cleaning and cleaning of grains and seeds for grain depot and seed company, and raw grains for flour mill, rice mill, feed, chemical and food processing industry. One machine can clean various grains such as wheat, maize, rice, beans, oil seeds by changing different screens.
Efficient feed cleaning machine Application
TQLZ vibration cleaner can further remove light impurities and dust if equipped with vertical air aspirator, and get ideal air cleaning effect by adjusting the machine according to impurity content of raw grains.
Cleaning Machine Technology
MobileTQLZ vibration cleaner are equipped with dust collecting system, such as air self-recycling aspirator, fan+cyclone, blower+bag filter, providing enviromental-friendly grain precleaning for farms, silos and grain depots. Good quality rubber wheels are easy to run on different road situation.
Feed Cleaning Machine Date
|
Model |
Screen Size
(W x L)
(cm2)
|
Capacity
on Wheat
(t/h)
|
Screen Angle
(°)
|
Power
(kW)
|
Weight (kg) |
Size
(L x W x H)
(mm)
|
Air Suction Volume
(m3/min)
|
|
Pre-cleaning |
Cleaning |
Pre-cleaning |
Cleaning |
|
TQLZ40x80 |
40x80 |
3 |
2 |
6 |
6 |
2x0.15 |
190 |
1300x820x1095 |
22 |
|
TQLZ60x100 |
60x100 |
20 |
5 |
6 |
6 |
2x0.25 |
360 |
1640x1550x1455 |
32 |
|
TQLZ100x100 |
100x100 |
30 |
8 |
6 |
6 |
2x0.25 |
420 |
1640x1610x1455 |
52 |
|
TQLZ100x150 |
100x150 |
50 |
12 |
9 |
6 |
2x0.37 |
520 |
2140x1610x1455 |
80 |
|
TQLZ100x200 |
100x200 |
60 |
16 |
12 |
6 |
2x0.37 |
540 |
2640x1610x1455 |
90 |
|
TQLZ150x100 |
150x100 |
50 |
12 |
6 |
6 |
2x0.37 |
540 |
1640x2160x1455 |
80 |
|
TQLZ150x150 |
150x150 |
75 |
16 |
9 |
6 |
2x0.75 |
630 |
2140x2160x1455 |
110 |
|
TQLZ150x200 |
150x200 |
100 |
24 |
12 |
6 |
2x0.75 |
650 |
2640x2160x1455 |
135 |
|
TQLZ180x200 |
180x200 |
120 |
28 |
12 |
6 |
2x1.1 |
1000 |
2740x2510x1980 |
160 |
Cleaning Machine Feature:
1.The effect of handling medium and small impurities is good;
2.The screen body and the frame are supported by four rubber springs, effectively preventing the transmission of vibration to the ground;
3.Sieve grid is convenient and simple to take and take;
4.Vibration motor directly drives the screen body, and the failure rate is small;
5.There are two types of fixed and mobile for optional.
