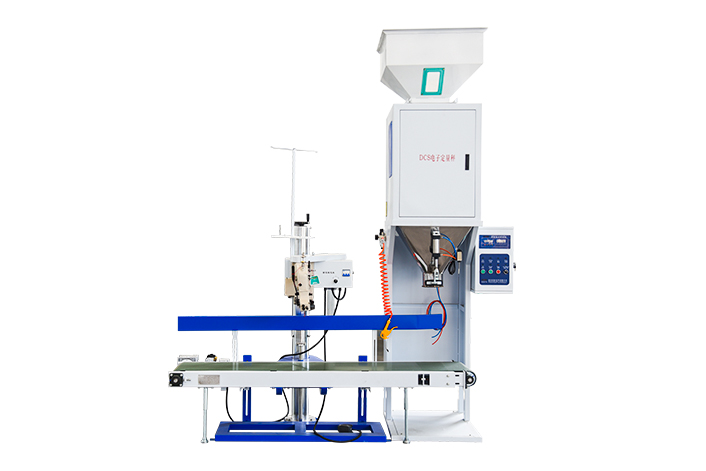

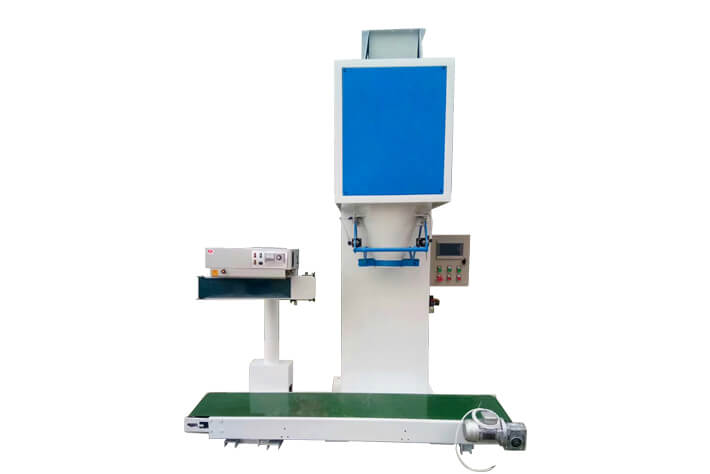

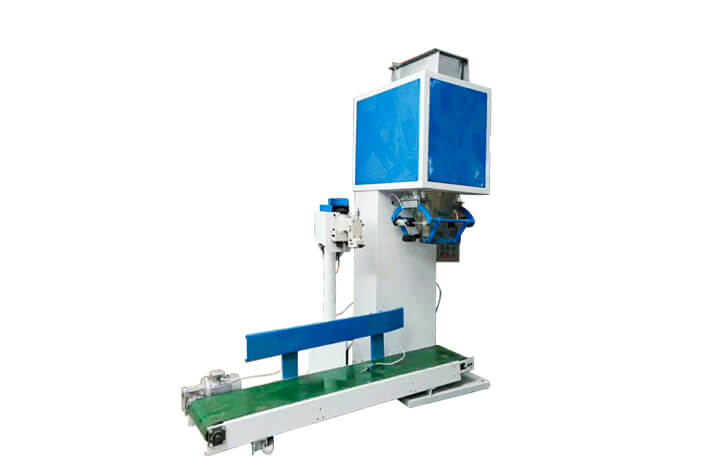

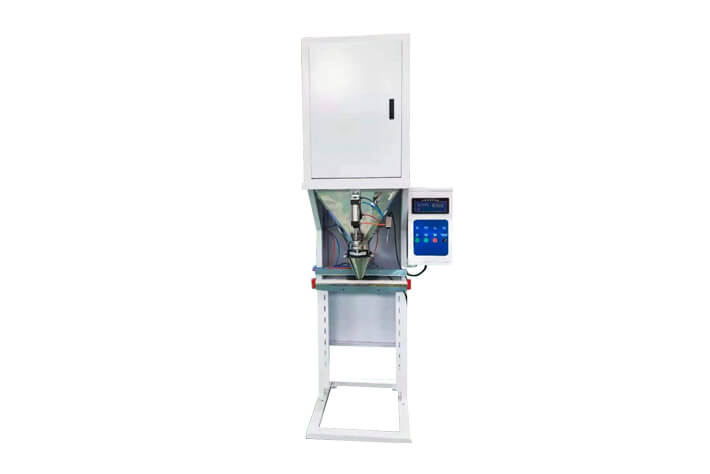

Packing Machine
Packaging machine introduction:
The electronic quantitative packing scale adopts advanced stainless steel weighing sensor, special weighing control terminal for packaging scale, programmable controller technology, and single bucket net weight measurement to realize all the actions in the automatic quantitative packaging process of materials, with high precision and high Speed, environmental adaptability, and system reliability.
Application of this Packaging machine :
1, Powdery materials, such as flour, starch, protein powder, mineral powder, cement and so on.
2, Pellet materials, such as rice, wheat, seeds, beans, chestnuts and so on.
3, Special materials, such as wrinkle, soybean meal, powder particles and so on.
This packing machine can be widely used in feed mills, flour mills, rice mills, oil plants, chemical cement and other industries.
Main structure:
Consisting of quantitative scale body, computer weighing controller, conveyor, sewing machine, etc.
Advantages of this Packaging machine :
1. Simple operation, simple structure, reliable work, convenient installation and maintenance.
2, High work efficiency, low power consumption rate, economical and practical.
3.The body uses high-quality components, high quality, durable.
4. Complete machine specifications, various types, to meet the demands of different customers
Main Parameter
Name |
Unit |
Technical Parameters |
Model |
|
AIX-251 |
AIX-252 |
AIX-501 |
AIX-502 |
capacity |
t/h |
8 |
12 |
10 |
15 |
Weighing range |
kg |
5-25 |
5-25 |
25-50 |
25-50 |
Measurement accuracy
|
|
±0.1%-0.5% |
Bag weight pass rate |
|
≥95% |
Belt power |
kw |
0.37 |
Belt width |
mm |
350 |
Sewing machine form |
|
Column type |
Air pressure |
Mpa |
0.4-0.8 |
weight |
kg |
300 |
400 |
550 |
550 |
size |
mm |
3000*1100*2600 |
4800*1100*2600 |
3000*1100*2600 |
4800*1100*2600 |
